Product overview

CHENSHUO · Metering Project Supply

Electromagnetic Flow Meters

Electromagnetic flow meters use electromagnetic induction to measure the flow of conductive liquids. Different linings, electrodes and installation designs suit water, wastewater and process-liquid applications.

Lining & electrode choicesIntegrated / remote converterLocal display & signal output

Explore Product Options Discuss Your Project

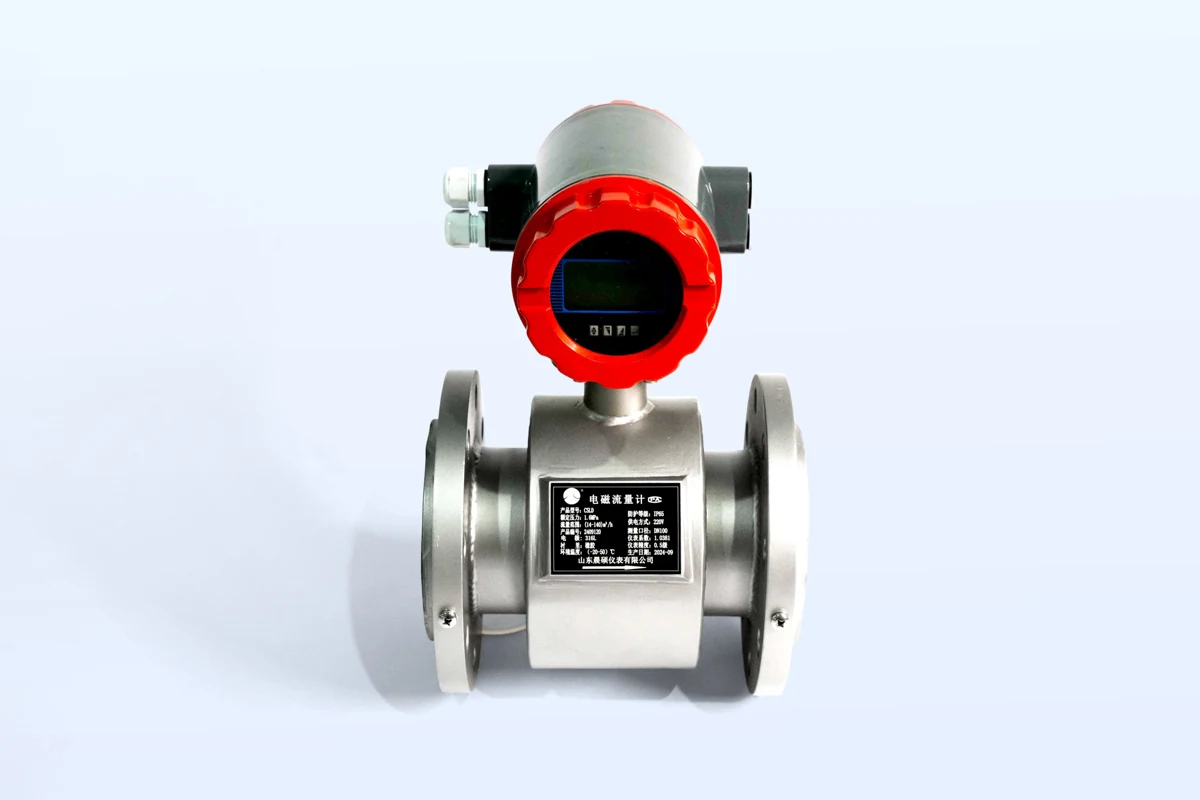

Electromagnetic Flow Meters actual product assembly — Chenshuo product seriesElectromagnetic Flow Meters

Select Your Product

Find the Right Meter for Your Application

Metering options for water, process liquids, submerged sites and heating or cooling systems.

Integrated Electromagnetic Flow Meter

For a local display at the pipe

Integrated Electromagnetic Flow Meter

An integrated sensor and converter provide local flow display and 4-20 mA output for water, wastewater and other compatible conductive liquids.

Rubber lining and 316L electrodes.
220 V or 24 V supply configurations.
4-20 mA output for connection to receiving instruments.

Supply options: 220 V / 24 V
Featured unit: CSLD / DN100

Discuss This Option View Technical Data

Compare What Matters

Compare the Installation and Wetted Parts

Material selection and converter location are separate choices. A remote-converter design can also use compatible corrosion-resistant materials.

Configuration	Choose when	Check first
Standard integrated	Local display at the pipe	Liquid duty, lining and power
Corrosion-resistant	Wetted materials need special matching	Composition, concentration and temperature
Remote converter	Display needs to sit away from the pipe	Cable route and converter location
Heating / cooling	Thermal energy is required	Calculator and matched temperature pair
Integral submersible	Submerged installation is specified	Selected battery-powered IP68 design
Insertion	Large-pipe probe measurement is required	Pipe, valve and installation conditions

Technical Data

Specifications & Configuration Options

Power supply, wetted materials and installation options for each design.

CSLD DN100 Specifications

Parameter	CSLD DN100
Model	CSLD
Diameter	DN100
Flow range	14–140 m³/h
Rated pressure	1.6 MPa
Electrode	316L
Lining	Rubber
Power supply	220 V
Ingress protection	IP65

These specifications apply to the CSLD DN100 unit. Other sizes require a matching datasheet.

Need the selected-model datasheet or assembly drawing?Request Product Documents

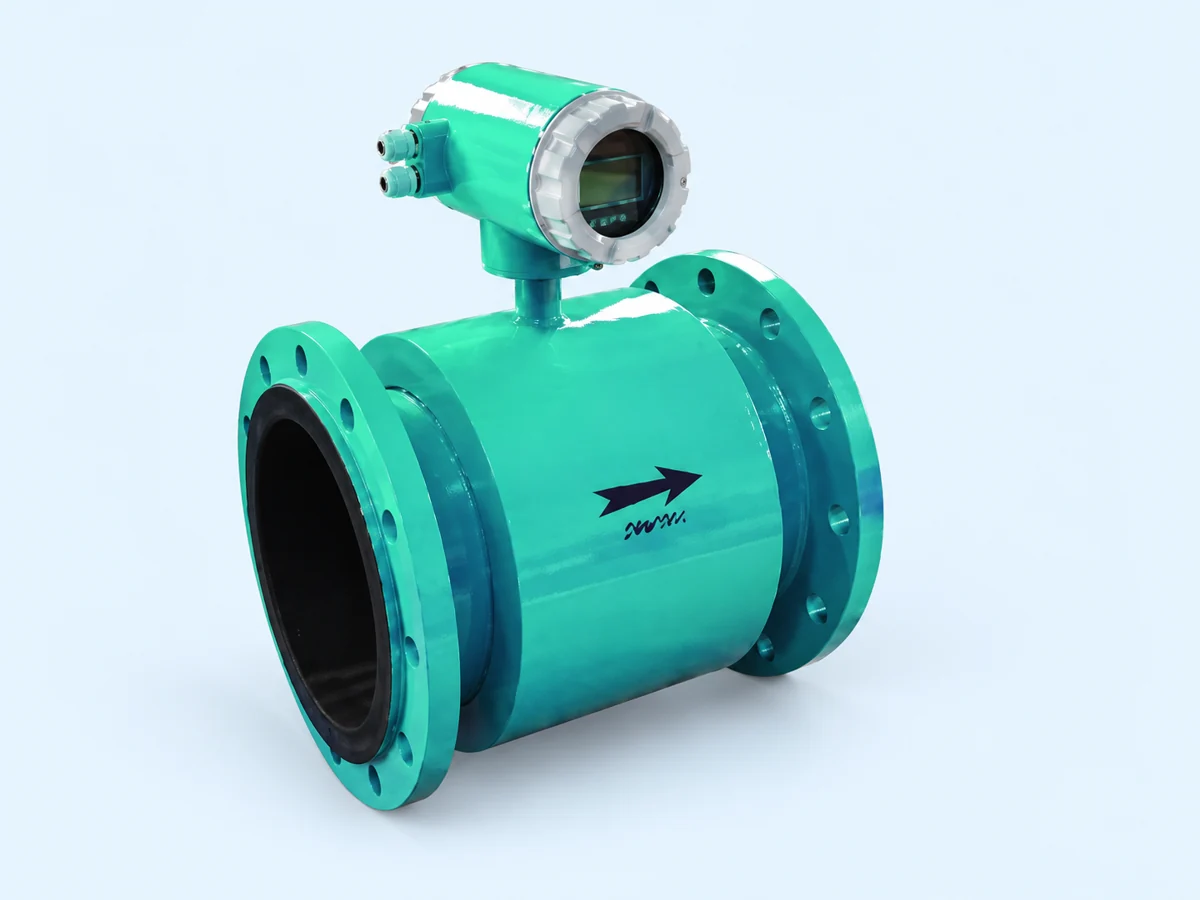

Corrosion-resistant Options

Parameter	Options
Lining	PTFE
Electrodes	316L / tantalum / titanium / Hastelloy / platinum-iridium
Connection	Integrated flanged assembly
Supply options	220 V / 24 V
Output	4–20 mA

Choose lining and electrode materials for your liquid composition, concentration and temperature.

Need the selected-model datasheet or assembly drawing?Request Product Documents

Remote-converter Options

Parameter	Available configuration
Lining options	Rubber / PTFE / PFA / F46 / polyurethane / silicone rubber
Electrodes	Selected compatible material
Sensor link	Dedicated signal cable
Supply options	220 V / 24 V
Submerged service	IP68 configuration available on request

Specify the signal cable, converter location and required protection with your inquiry.

Need the selected-model datasheet or assembly drawing?Request Product Documents

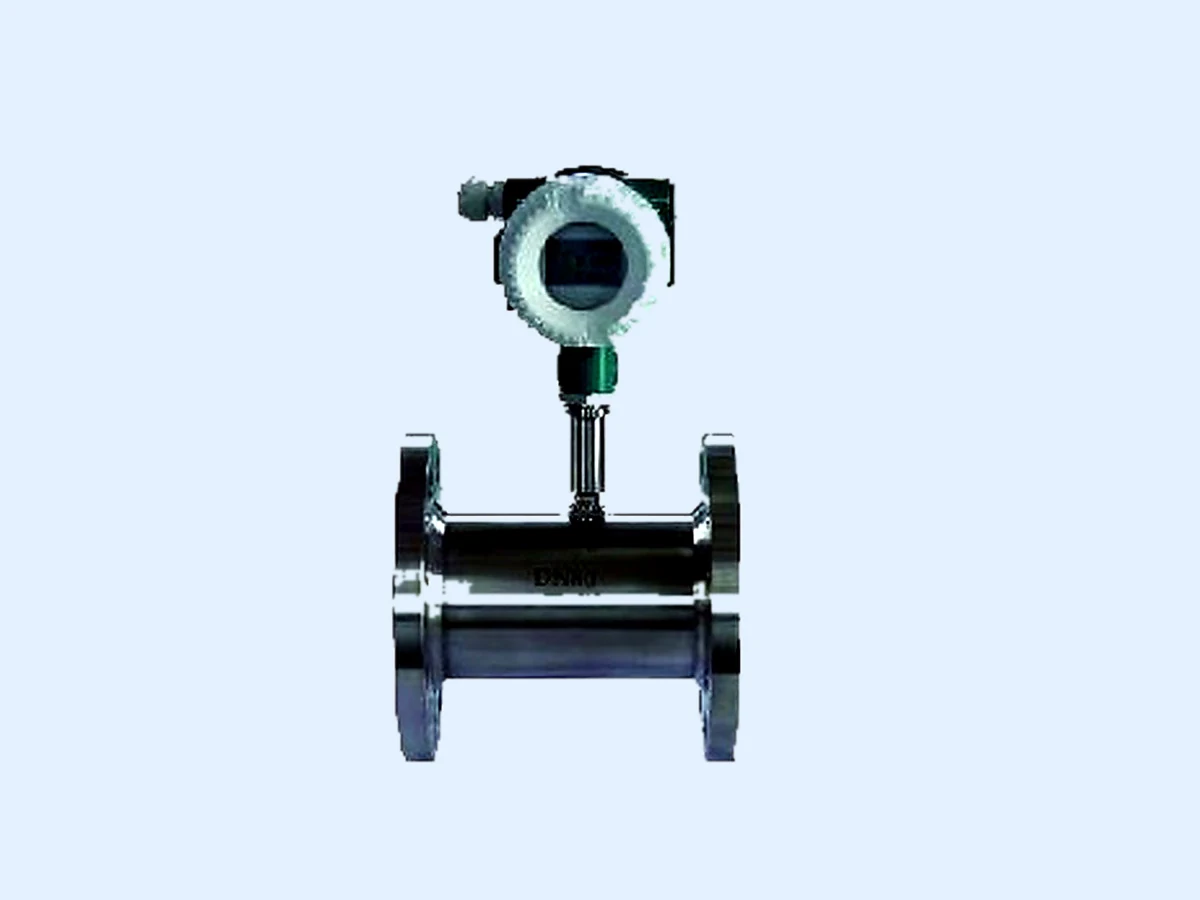

Thermal Energy Metering

Parameter	Configuration
Duty	Heating / cooling energy
Calculation	Converter with heat-calculation function
Temperature sensing	Matched PT100 or PT1000 pair
Construction	Integrated or remote
Supply options	220 V / 24 V

Heating or cooling energy measurement requires the calculator and a matched temperature-sensor pair.

Need the selected-model datasheet or assembly drawing?Request Product Documents

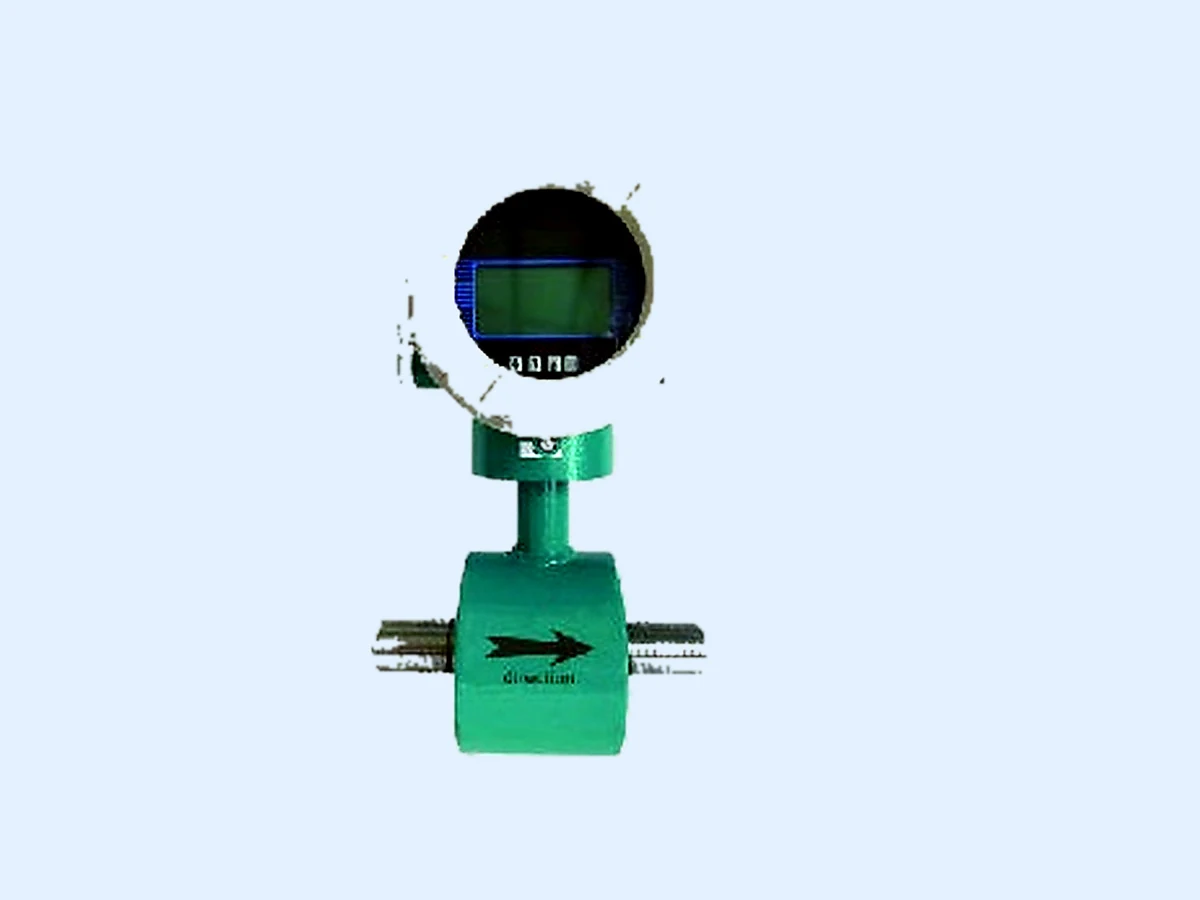

Submersible Meter Options

Parameter	Configuration
Power	Battery
Protection	IP68
Lining	PTFE
Other lining choices	Rubber / F46

Specify liquid, pipe size and operating conditions for a matching submersible meter.

Need the selected-model datasheet or assembly drawing?Request Product Documents

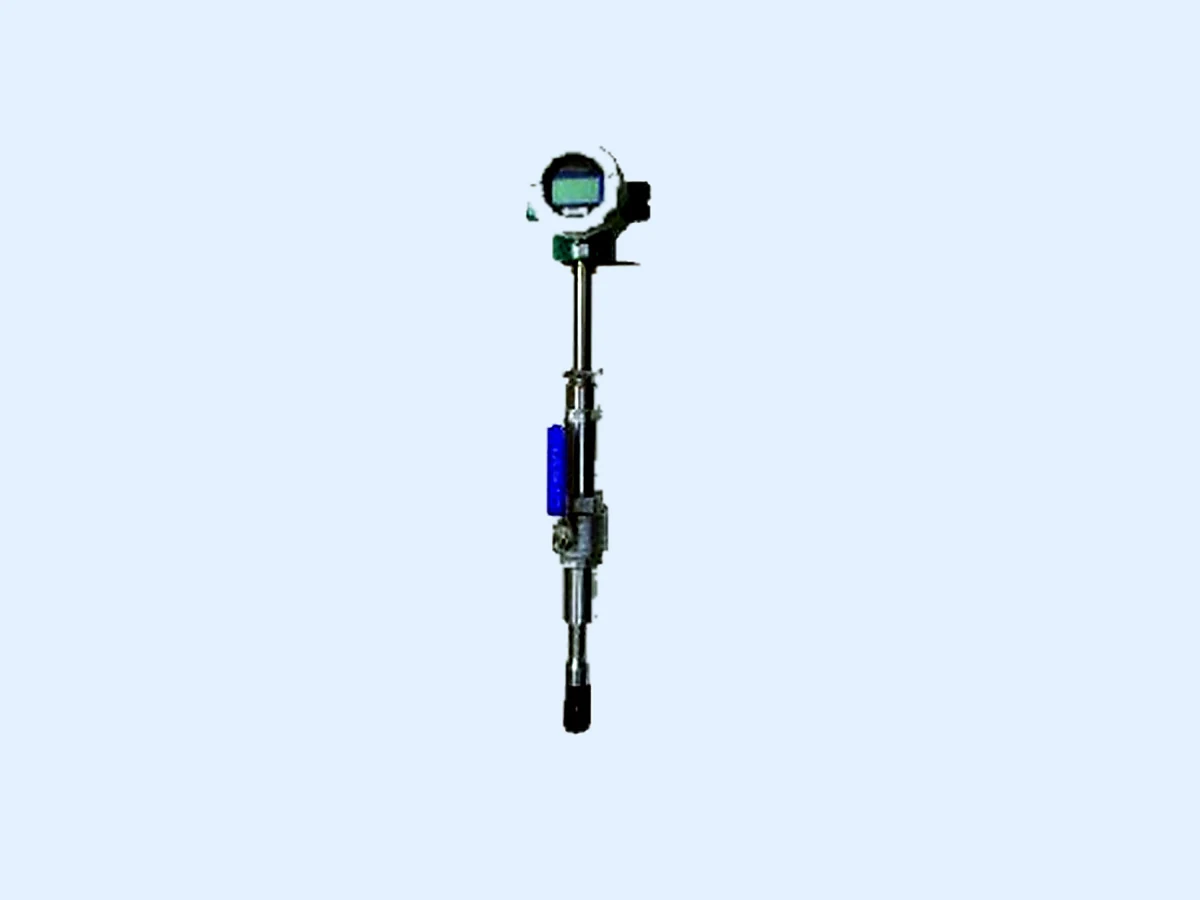

Insertion Meter Options

Parameter	Configuration
Measurement	Electromagnetic principle
Construction	Insertion probe
Valve arrangements	Large / small ball-valve versions
Pressure selection	Selected valve and model

Large- and small-ball-valve designs are available. Confirm pressure and installation requirements for the selected assembly.

Need the selected-model datasheet or assembly drawing?Request Product Documents

Project Matching

From Process Liquid to a Usable Flow Signal

Select the wetted materials, converter and output as one instrument configuration.

Define the Medium

Provide liquid composition, concentration, temperature and flow range.

Match the Instrument

Select lining, electrodes, DN, flange, supply and converter position.

Connect the Output

Match the configured signal with the receiving PLC, display or project system.

A water-flow instrument and an electromagnetic heat meter are not the same package. Energy measurement needs the appropriate calculator and matched temperature sensors.

Chenshuo Project Support

Product Supply.
Project Matching.
Technical Documents.

Project support for lining and electrode selection, electrical connections and installation drawings.

Chenshuo water meter production and assembly floor

Meter configuration

Options for flow, thermal energy, submerged service and insertion measurement.

Material & electrical matching

Lining, electrodes, power supply and receiving-instrument connections.

Project documents

Model-specific technical data and installation drawings.

Before You Order

Frequently Asked
Questions

Product, installation and system questions for your project.

Discuss Your Requirements

What should determine the lining and electrode choice?

Choose lining and electrodes for the actual liquid, concentration, temperature and operating conditions.

When is a remote converter useful?

A remote converter lets the display and electronics sit away from the sensor. Plan the dedicated signal cable and suitable converter location.

Is IP68 standard on every instrument?

No. The CSLD DN100 unit shown is rated IP65. Choose the IP68 integral submersible model or specify the IP68 remote configuration for submerged service.

Do all flow meters also measure heating or cooling energy?

No. Select the thermal-energy configuration with a calculator and matched temperature sensors when heating or cooling energy must be measured.

What information is needed for quotation?

Send liquid composition, temperature, flow range, DN, pressure, flange, quantity, supply voltage, converter location and receiving signal requirements.

Chenshuo Project Supply

Discuss Your
Metering Project

Discuss the actual medium and electrical requirements alongside the sensor, converter and installation drawing.

Select the product and operating duty.
Share DN, flow, quantity and installation requirements.
Request selected-model data and a project quotation.

Applications

Where this model is specified, and who is usually the buyer.

Chemical liquid flow

Industrial process water
