Select the right Chenshuo mechanical water meter page by confirmed DN range first, then verify installation direction, connection standard, flow range and project documents before quotation.

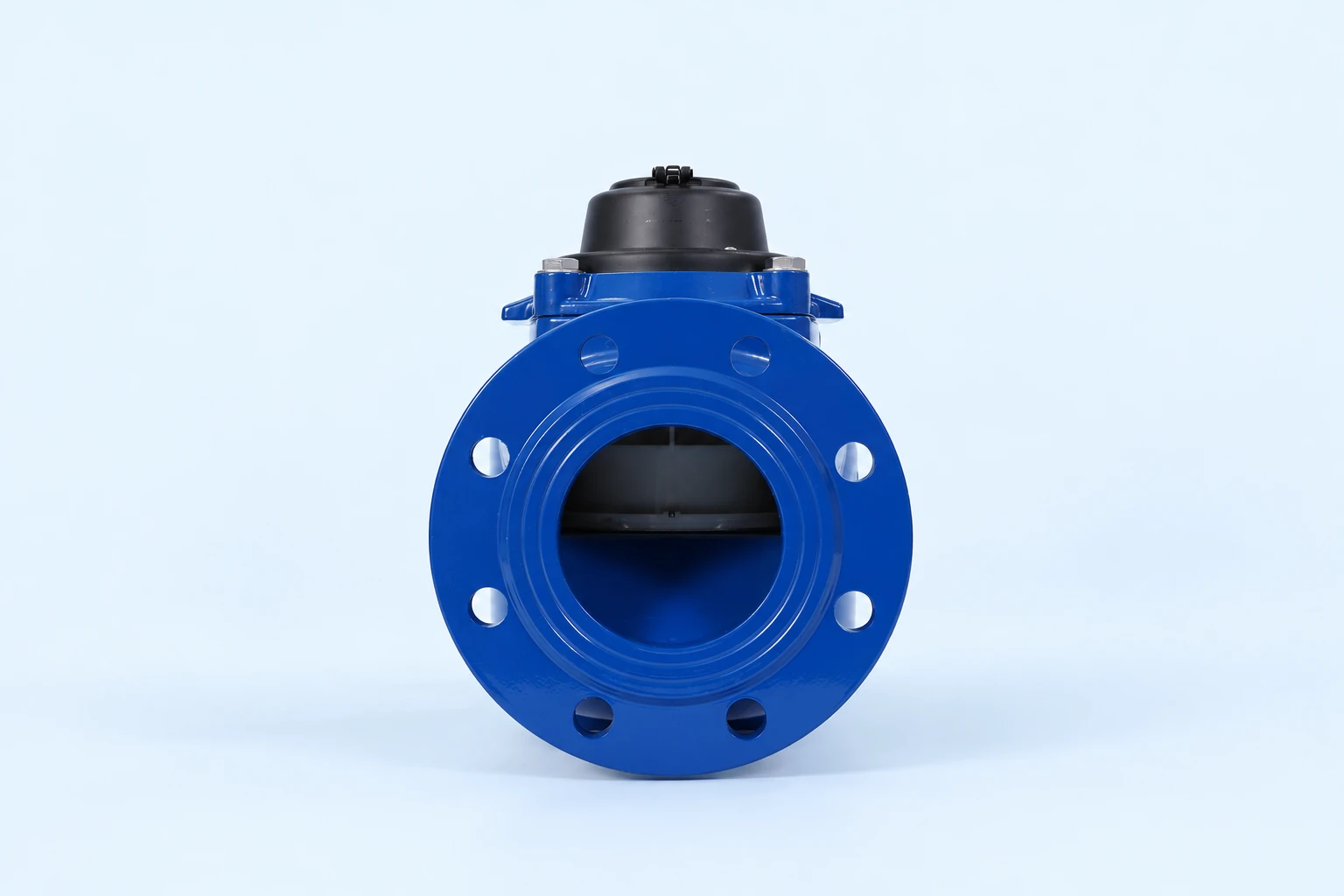

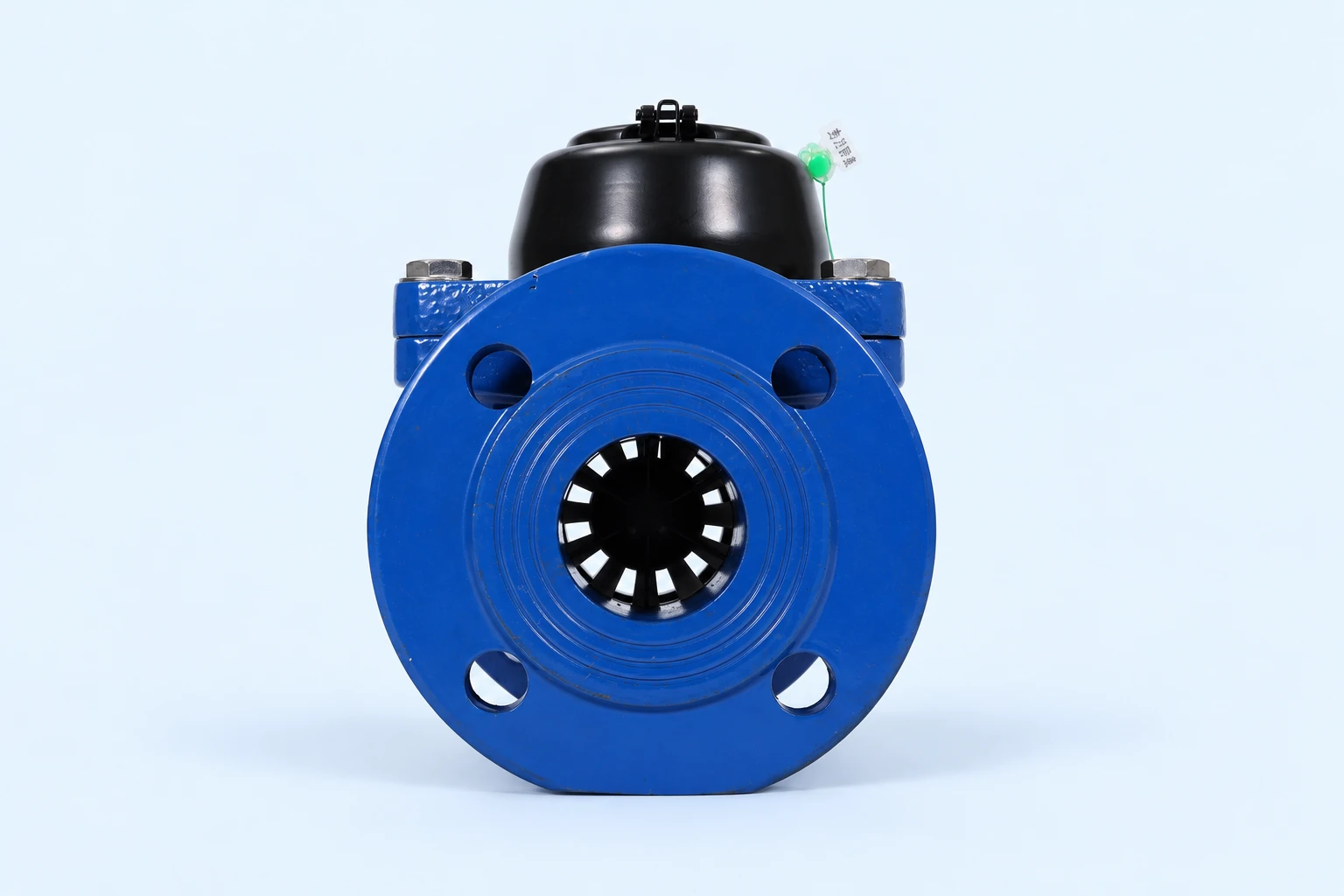

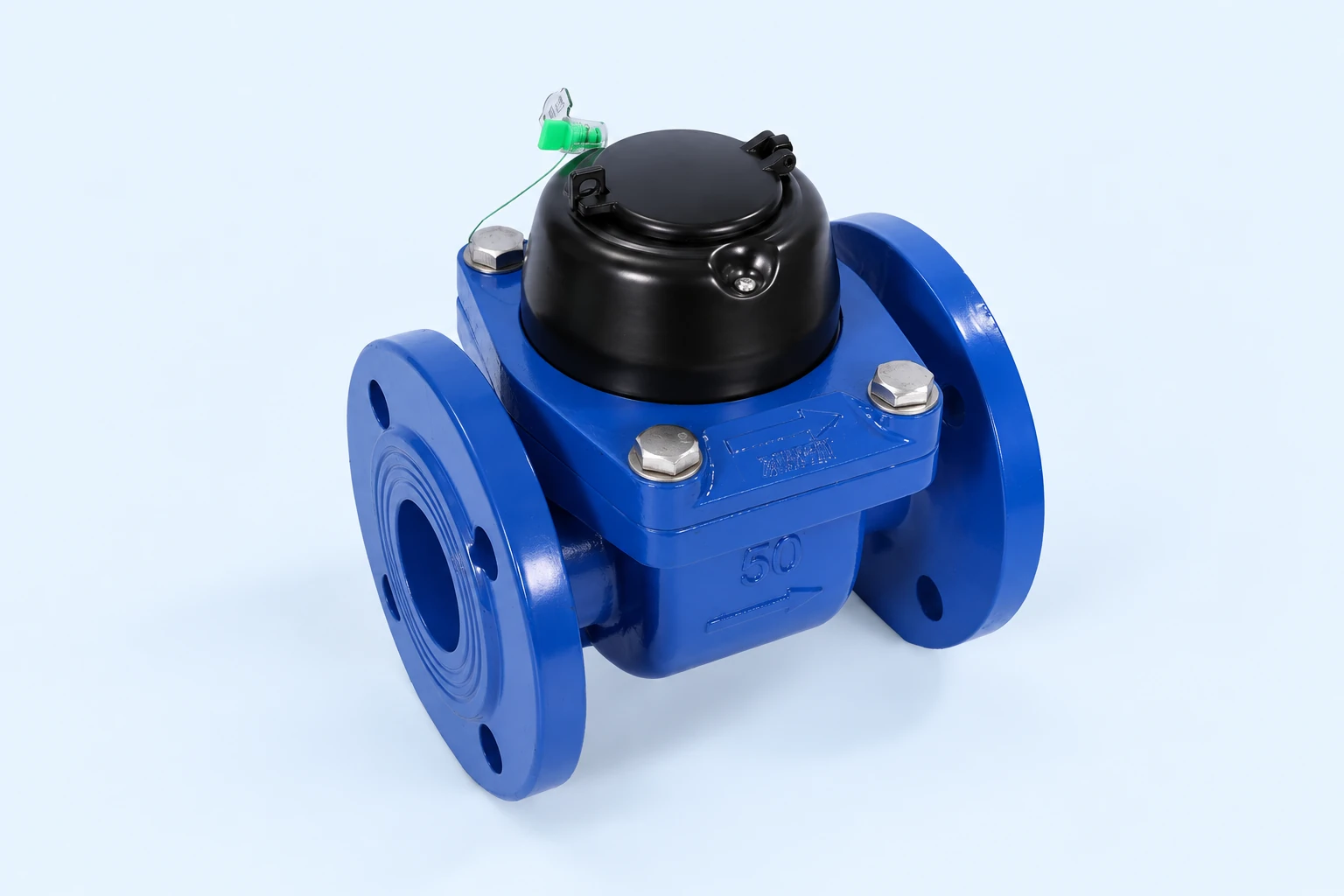

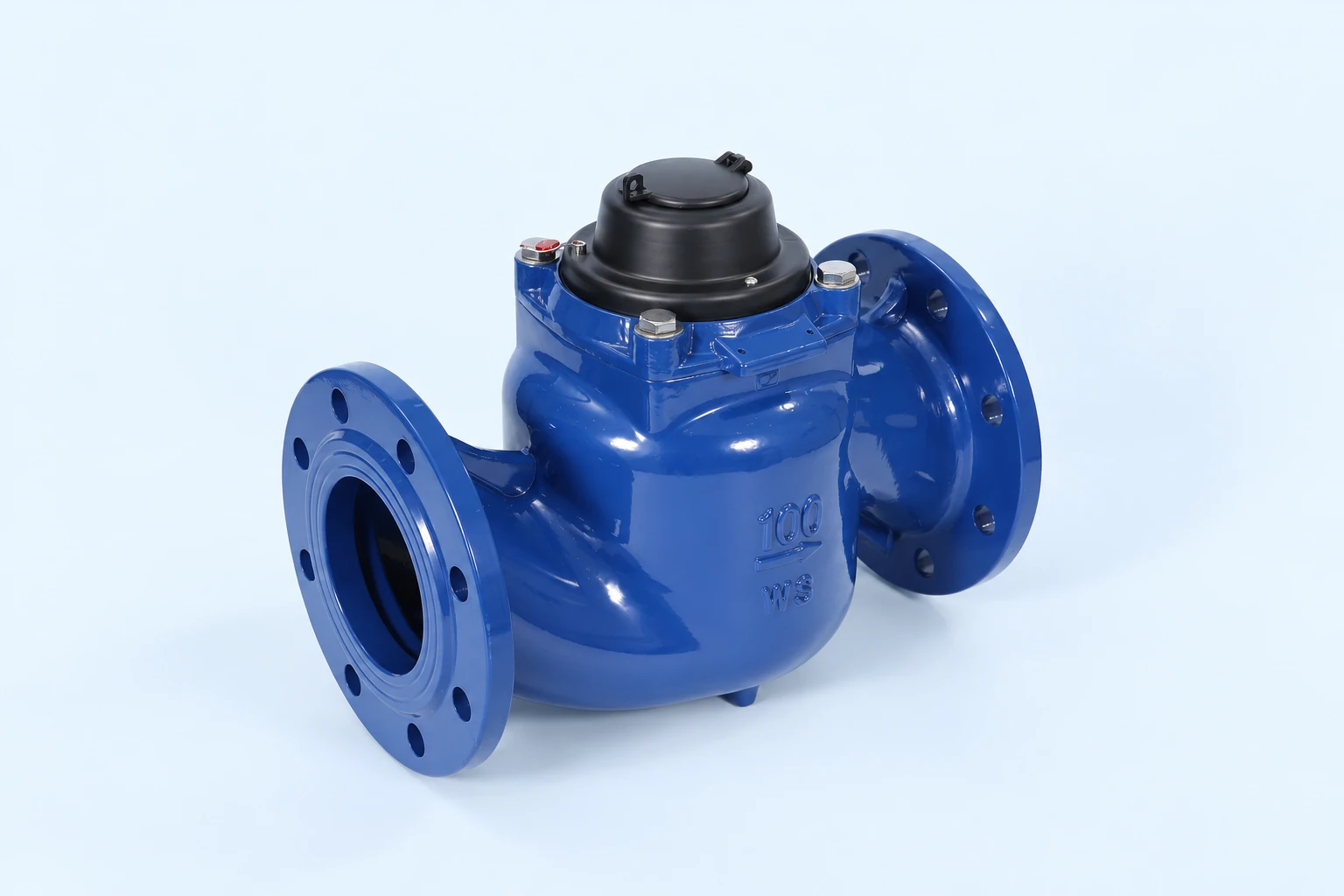

DN100 vertical WoltmanDN50 removable WoltmanVertical side viewRemovable side view
Choose Product Page by Pipe Size
Pipe size is the entry point. DN15-DN65 goes to the rotary-vane route, DN80-DN300 goes to the removable Woltman route, and DN80-DN200 is an overlap where vertical installation should switch the buyer to the vertical Woltman route.
For DN15-DN65 projects, the confirmed route is the rotary-vane water meter page.
Primary problem solved
Rotary-Vane Water Meter
Solves the small-pipe metering problem: common household, apartment and commercial branch lines need a compact meter body, clear reading and DN coverage from DN15 to DN65.
For DN80-DN300 projects, the confirmed main route is the removable Woltman water meter page.
Primary problem solved
Removable Woltman Water Meter
Solves the large-pipe service problem: bulk lines need flanged large-flow metering, and the removable structure makes future service easier than replacing the full meter body.
For DN80-DN200 vertical projects, use the vertical Woltman water meter page instead of the standard removable route.
Primary problem solved
Vertical Woltman Water Meter
Solves the installation-direction problem: when the pipe room or pipeline is vertical, the buyer needs a meter structure built for vertical installation rather than a standard horizontal layout.
These three routes are the product-page structure to use for customer selection. The goal is to move buyers from DN question to the correct product page quickly.

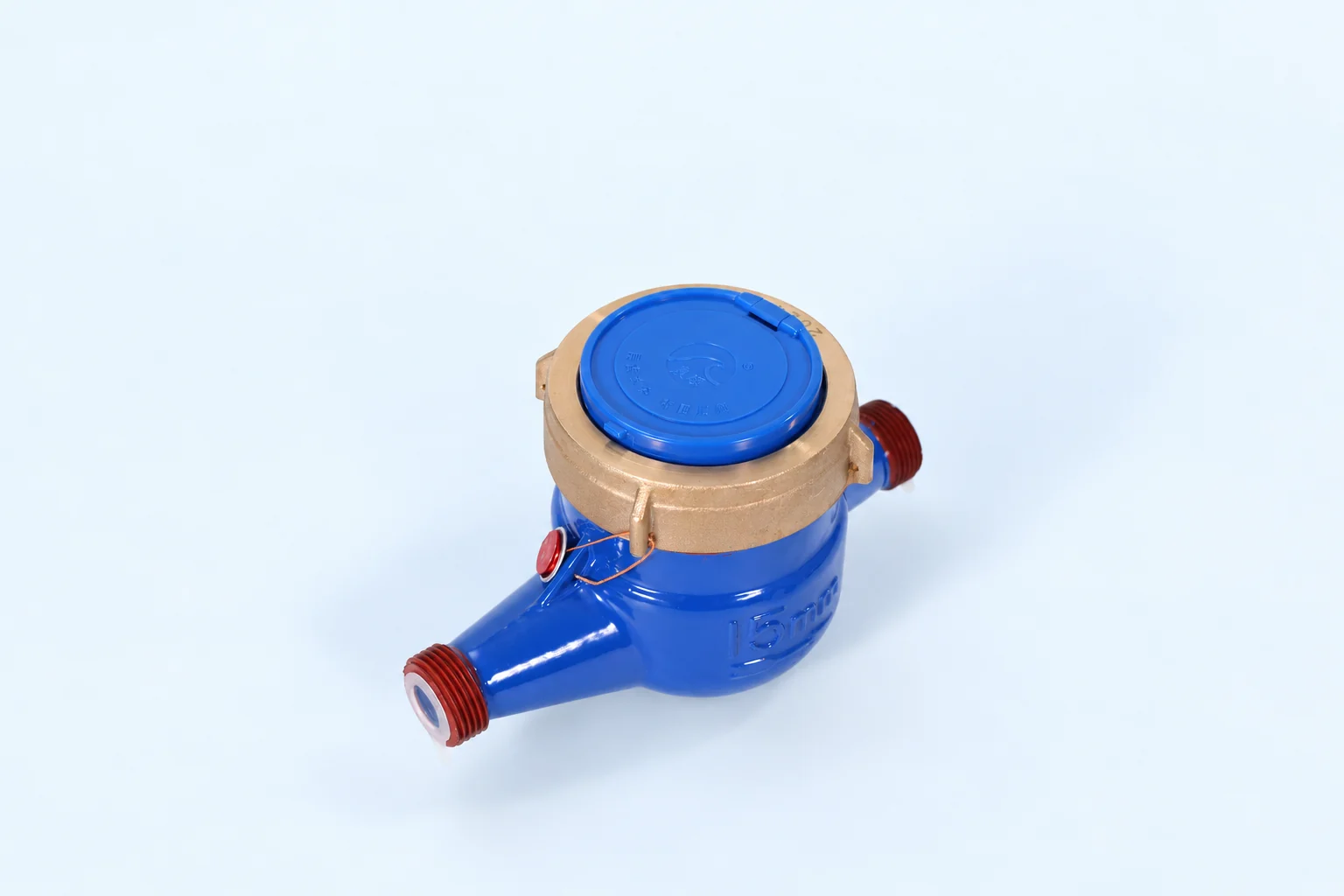

Rotary-Vane Water Meter
Available DNDN15-DN65
Choose whenSmall-pipe metering for service lines
Typical projectsFor household, apartment, commercial branch and light utility connections where the buyer first confirms DN15-DN65 coverage before choosing material, register and connection details.
Confirmed DNDN15-DN65
Connection focusThread size / installation length
Buyer concernReadable register and stable small-pipe metering
Choose whenLarge-pipe metering with easier maintenance
Typical projectsFor building inlets, municipal lines, industrial supply and trunk pipelines where the buyer needs DN80-DN300 coverage and wants a serviceable large-flow meter structure.
Confirmed DNDN80-DN300
Connection focusFlange standard / laying length
Buyer concernLarge-flow measurement and maintenance access
Choose whenLarge-pipe metering for vertical installation
Typical projectsFor DN80-DN200 projects where the pipe room or pipeline direction does not allow a standard horizontal layout. The choice is driven by installation direction first.
Confirmed DNDN80-DN200
Connection focusFlange standard / vertical clearance
DN, vertical clearance, flange standard, pressure rating and installation position
Confirmed DN and Selection Parameters
This table gives buyers the practical answer they need first: which product page covers their DN range, what installation condition it solves, and which details must be checked before quotation.
Product page
Confirmed DN
Best-fit use
Main checks
Buyer takeaway
Rotary-Vane Water Meter
DN15-DN65
Service-line and branch-line measurement
Thread / installation length by selected DN
Use this product page when the buyer's first question is small-pipe DN coverage.
Removable Woltman Water Meter
DN80-DN300
Large-flow main line, building inlet and industrial supply
Flange / laying length / pressure by selected DN
Use this product page when the buyer needs a maintainable large-pipe meter.
Vertical Woltman Water Meter
DN80-DN200
Vertical pipe-room or vertical pipeline installation
Flange / vertical clearance / pressure by selected DN
Use this product page when installation direction is the deciding constraint.
DN ranges follow the factory-confirmed product-page route. Final flow data, pressure rating, connection standard, laying length, pulse output and project documents should be matched to the selected model before order confirmation.
Technical Documentation and Project Supply Support

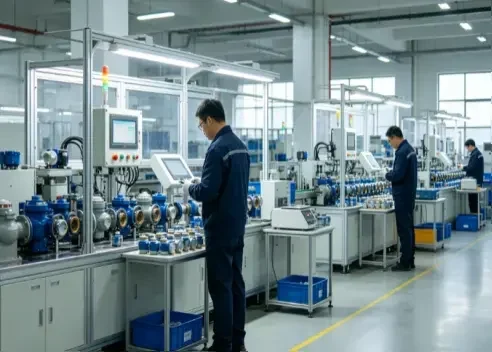

Chenshuo supports mechanical water meter selection for residential, commercial, municipal and industrial projects. Our team can help buyers confirm the correct product page by DN range, then provide model matching, datasheets, installation dimensions and applicable project documents by selected meter type.
Factory-confirmed DN route: DN15-DN65, DN80-DN300 and DN80-DN200Project matching by pipe size, installation direction and maintenance needsISO9001, ISO14001, ISO10012 and ISO45001 documents available for supplier reviewDatasheets, installation dimensions and project documentation support by selected model
FAQ
How do I choose the right product page by DN?
Use DN15-DN65 for the rotary-vane water meter page, DN80-DN300 for the removable Woltman water meter page, and DN80-DN200 for the vertical Woltman water meter page when the installation direction is vertical.
When should I choose the removable Woltman route?
Choose the removable Woltman route for DN80-DN300 bulk lines when maintenance access, future service and large-flow measurement are important to the project.
When should I choose the vertical Woltman route?
Choose the vertical Woltman route for DN80-DN200 projects where the pipe room or pipeline direction requires vertical installation.
Can DN80-DN200 use both removable and vertical Woltman pages?
Yes. DN80-DN200 overlaps both routes. Use removable Woltman for standard large-pipe metering and easier maintenance; use vertical Woltman when installation direction is the deciding constraint.
Can you provide dimensions and installation drawings?
Yes. Send DN size, connection standard, pressure requirement and installation layout, and Chenshuo can provide model-specific dimensions or drawings subject to the selected meter configuration.
What information is required for a project quotation?
Send the pipe size, operating flow and connection requirement. Chenshuo can support model matching, datasheets, installation dimensions and quotation review for your project.
Share DN size, quantity, installation direction and project type.
Confirm thread or flange standard, pressure requirement, pulse output and drawing needs.
Receive model matching support before the final quotation is prepared.
