Ultrasonic water meters

Small-diameter Ultrasonic Water Meters

Compare small-diameter ultrasonic water meters with reading-only or prepaid control. View DN15-DN40 series flow and dimension references.

Request a Quote View Specifications
Small-diameter Ultrasonic Water Meters

Product overview

Home/Small-diameter Ultrasonic Water Meters
CHENSHUO · Metering Project Supply

Small-diameter Ultrasonic Water Meters

Measure water without a rotating measuring mechanism. Choose a reading-only or prepaid valve-control assembly, then match the size and communication option to your project.

Ultrasonic measurementReading / valve optionsDN15–DN40 reference
Explore Product OptionsDiscuss Your Project
Small-diameter Ultrasonic Water Meters actual product assembly
Chenshuo product seriesSmall-diameter Ultrasonic Water Meters
Select Your Product

Choose Your Water-management Option

Keep measurement and valve requirements separate. A communication option does not automatically add prepaid control.

Select the pipeline diameterThen compare the product options below.

DN / Q3 / L below refer to the printed P50 ultrasonic series table, not a separate size guarantee for every valve assembly.

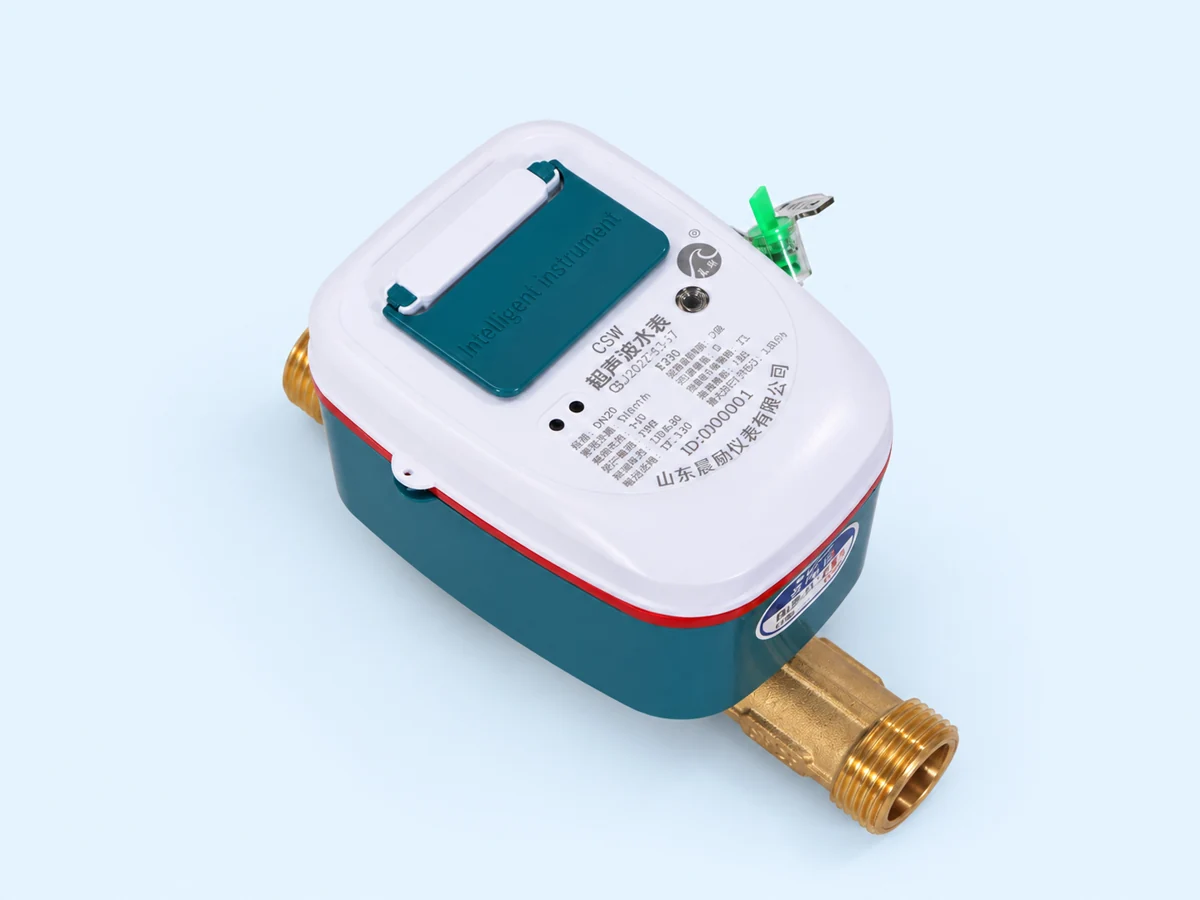

Reading-only Ultrasonic Water Meter

Actual product design shown; match the selected assembly and specification.

When you need readings, not a shut-off valve

Reading-only Ultrasonic Water Meter

Use ultrasonic water measurement for service connections without adding a rotating measuring mechanism.

  • No moving measuring parts inside the flow path.
  • Review low-battery, sensor and over-range alarm functions for operation.
  • Choose a compatible M-BUS, RS485, LoRa or NB-IoT configuration rather than assuming every interface is included.
Series reference
DN15–DN40
Pictured sample
DN20 / Q3 4.0 m³/h
Discuss This OptionView Technical Data
Compare What Matters

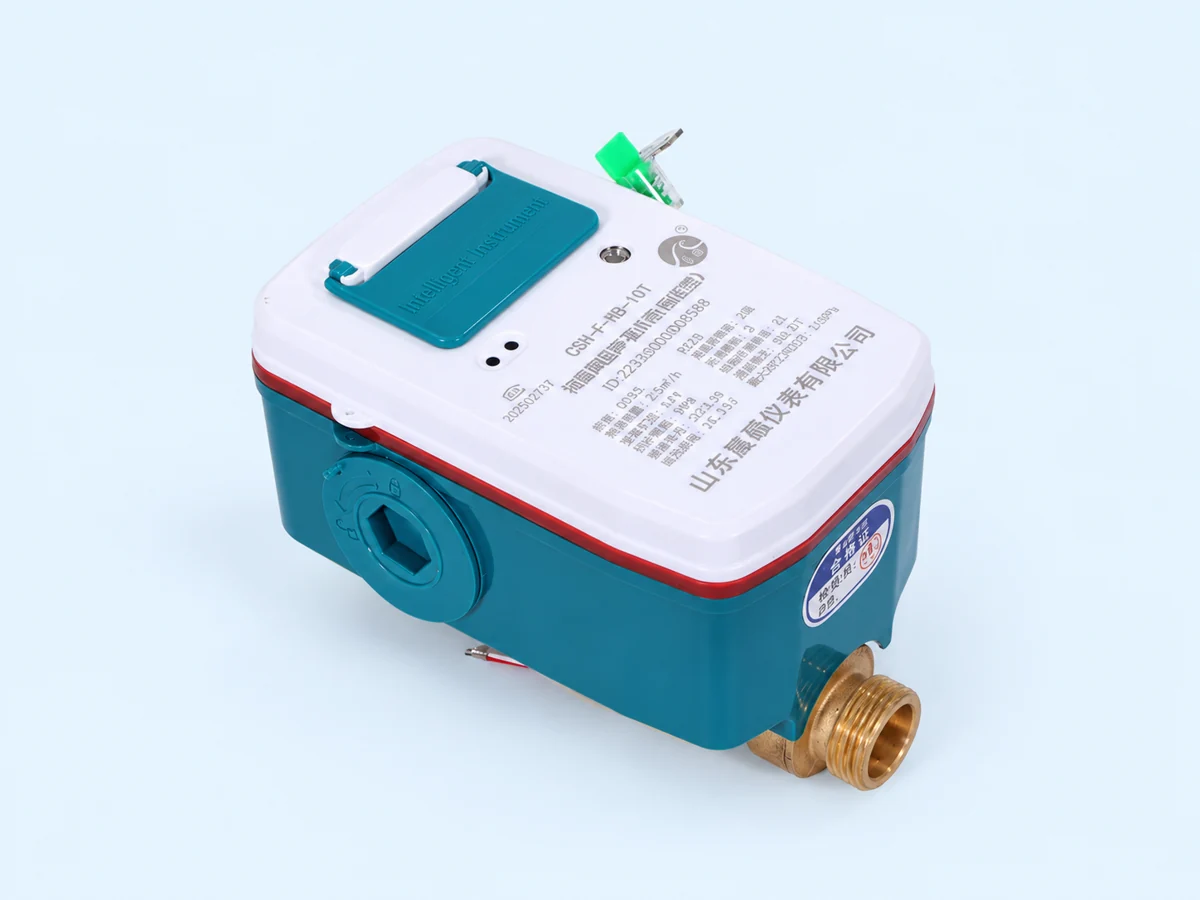

Reading Only or Prepaid Control?

The key purchase decision is whether the meter also needs to control the water supply.

DecisionReading-only assemblyPrepaid assembly
Primary dutyMeasure and report water consumptionMeasure water with a matching prepaid / valve workflow
ValveNo valve in the supplied reading-only versionDedicated valve-control product
System pairingChosen reading interface and collector / platformBilling rules, control commands and selected interface
InstallationSelected meter body and connectionComplete valve-equipped assembly dimensions
Technical Data

Sizes, Flow & Configuration

Review the applicable product data, then request the matching model and installation documents.

Ultrasonic Series Flow Reference

DNQ3 (m³/h)Meter L (mm)
DN152.5165
DN204195
DN256.3225
DN3210180
DN4016200

Printed P50. These are named series reference values. They are not a universal finished drawing for the prepaid assembly.

Need the selected-model datasheet or assembly drawing?Request Product Documents
Project Matching

Pair the Meter with Your Reading or Billing System

Select the meter function first, then connect the matching data and control equipment.

01

Meter the Water

The ultrasonic sensor measures the water flow without a rotating measuring element.

02

Select the Interface

Use the selected wired or wireless option with compatible equipment.

03

Read or Manage Credit

Collect readings; add prepaid control only with the dedicated assembly and matching software.

M-BUS / RS485 / LoRa / NB-IoT are alternative communication configurations in the series. They are not all standard interfaces on every meter.

Chenshuo Project Support

Product Supply.
Project Matching.
Technical Documents.

Match the metering body, finished installation length and reading / billing interface in one project discussion.

Chenshuo water meter production and assembly floor
Ultrasonic meter supply

Compare reading-only and dedicated prepaid assemblies.

System configuration

Match the selected interface and management workflow.

Model-specific data

Request the complete assembly drawing and applicable performance data.

Before You Order

Frequently Asked
Questions

Product, installation and system questions for your project.

Discuss Your Requirements
How does this differ from a mechanical water meter?

An ultrasonic meter measures using the difference in acoustic transit time. It does not use a rotating measuring mechanism in the water path.

Is prepaid control included on every ultrasonic meter?

No. The manufacturer supplies a reading-only version and a dedicated prepaid version. Choose the valve-equipped product and compatible billing system when control is required.

Do all models support R400?

The series description mentions up to R400, while the printed technical table and pictured samples have their own values. Use the selected model data; do not treat the series maximum as the default for every meter.

Can a standard installation length be used for the prepaid version?

Not without checking the finished assembly. The valve body and electronics can change installation dimensions.

What should we send for a quotation?

Send DN, normal / peak flow, quantity, required reading interface, installation length and whether prepaid valve control is needed.

Chenshuo Project Supply

Discuss Your
Metering Project

Match the metering body, finished installation length and reading / billing interface in one project discussion.

  • Select the product and operating duty.
  • Share DN, flow, quantity and installation requirements.
  • Request selected-model data and a project quotation.

Request matching technical data, installation dimensions and project supply information.

Request Project Documents

Share the selected product, DN, operating conditions and system requirements. Discuss matching model data, installation drawings and project supply.

Include the selected product, DN, quantity and operating conditions for matching technical documents and quotation support.

Applications

Where this model is specified, and who is usually the buyer.

Building sub-metering

Prepaid water metering

Remote reading projects

Get a quote for Small-diameter Ultrasonic Water Meters

Tell us the sizes and quantities you need and we will come back with pricing, lead time and the data sheet.

  • Factory-direct pricing with no trading company in between
  • OEM branding, dial customisation and private labelling available
  • Samples available for evaluation before a full order
  • Technical support on sizing, installation and system integration
