Ultrasonic Heat Meters

Ultrasonic heat meters combine water-flow measurement, paired temperature sensors and a calculator to measure heating or cooling consumption. Choose standard metering, NB-IoT remote reading or IC-card prepaid control.

Flow + temperature pairHeating / cooling dutyStandard, remote & prepaid

Explore Product Options Discuss Your Project

Ultrasonic Heat Meters actual product assembly — Chenshuo product seriesUltrasonic Heat Meters

Select Your Product

Find Your Ultrasonic Heat Meter

Three management options, with small- and large-diameter designs where available.

Standard Metering

NB-IoT Remote Reading

Prepaid Control

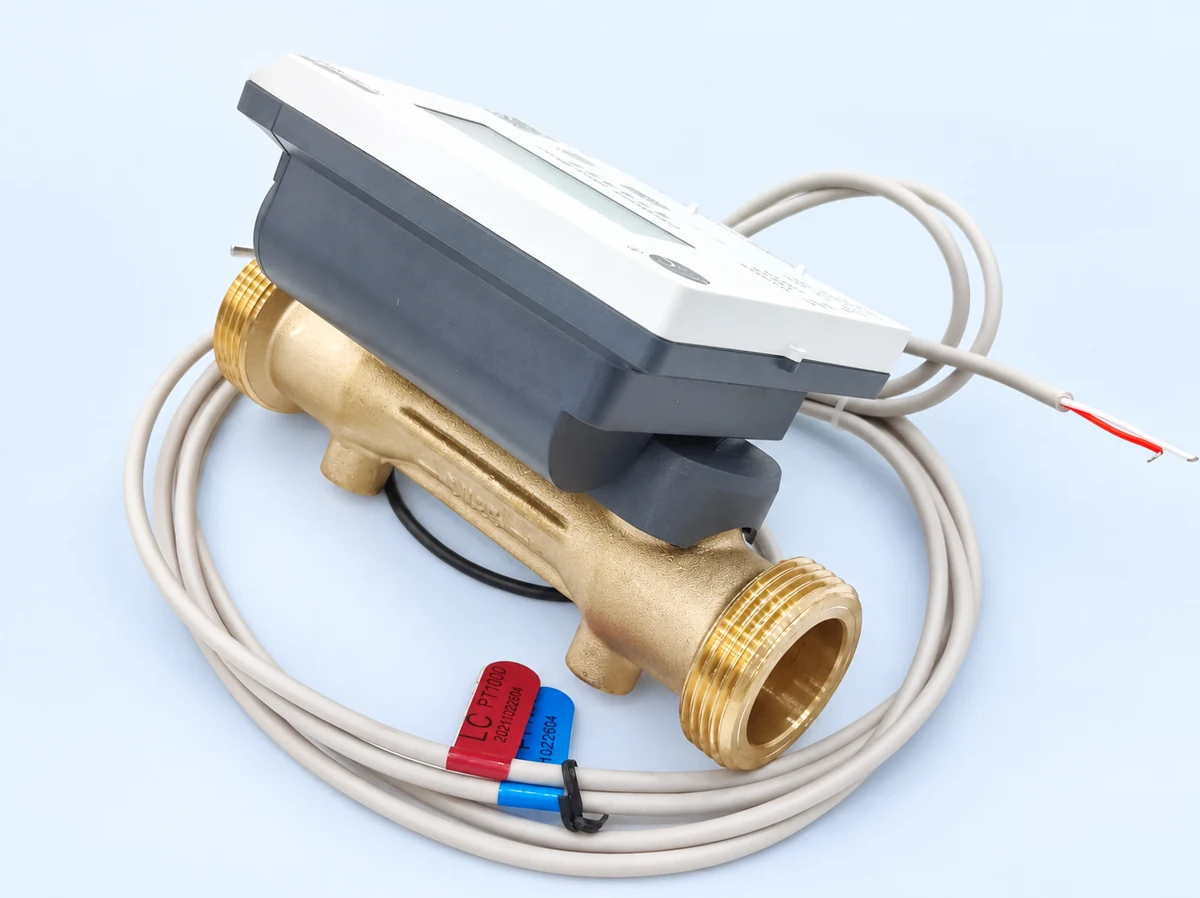

Small-diameter Ultrasonic Heat Meter

Standard Metering

Small-diameter Ultrasonic Heat Meter

Threaded connections for smaller heating and cooling circuits.

No rotating flow-measurement mechanism in the meter body.
Matched PT1000 temperature sensing and a calculator form the energy measurement package.
Choose the flow rating and installation length that match your circuit.

Sizes: DN15-DN40 dimensions; DN20-DN40 flow ratings
Management: Standard Metering

Discuss This Option View Technical Data

Compare What Matters

Compare the Management Routes

All three routes measure thermal energy, but their communication and control packages are different.

Route	Primary job	System pairing	Control scope
Standard	Measure heat / cooling consumption	Calculator, matched temperature pair and selected reading interface	Metering; no prepaid valve assumed
NB-IoT	Remote heat readings	Operator network and compatible platform	Selected communication / control configuration
IC-card prepaid	Pay before heat use	Compatible card and vending system	Dedicated motor-controlled valve

Technical Data

Flow Rates & Installation Dimensions

Check the data for your selected heat-meter design, then specify the required flow and connection size.

Small-diameter Ultrasonic Heat Meter – Flow & Dimensions

Permanent flow Qp is shown separately from maximum flow Qs. Match the selected assembly, temperature pair and calculator.

Model	DN (mm)	Qs (m³/h)	Qp (m³/h)	Qi (m³/h)
CSHM-DN20	20	5	2.5	0.05
CSHM-DN25	25	7	3.5	0.07
CSHM-DN32	32	12	6	0.12
CSHM-DN40	40	20	10	0.20

Installation Dimensions

DN	Total L (mm)	Meter L (mm)	W (mm)	H (mm)
DN15	225	110	110	120
DN20	235	130	110	120
DN25	275	160	110	120
DN32	305	180	110	130
DN40	325	200	110	140

Qp: permanent flow; Qs: maximum flow; Qi: minimum flow. Dimensions are in mm. Total length and meter-body length are different measurements. DN15 installation dimensions are listed; a DN15 flow rating is not specified in this schedule.

Need the selected-model datasheet or assembly drawing?Request Product Documents

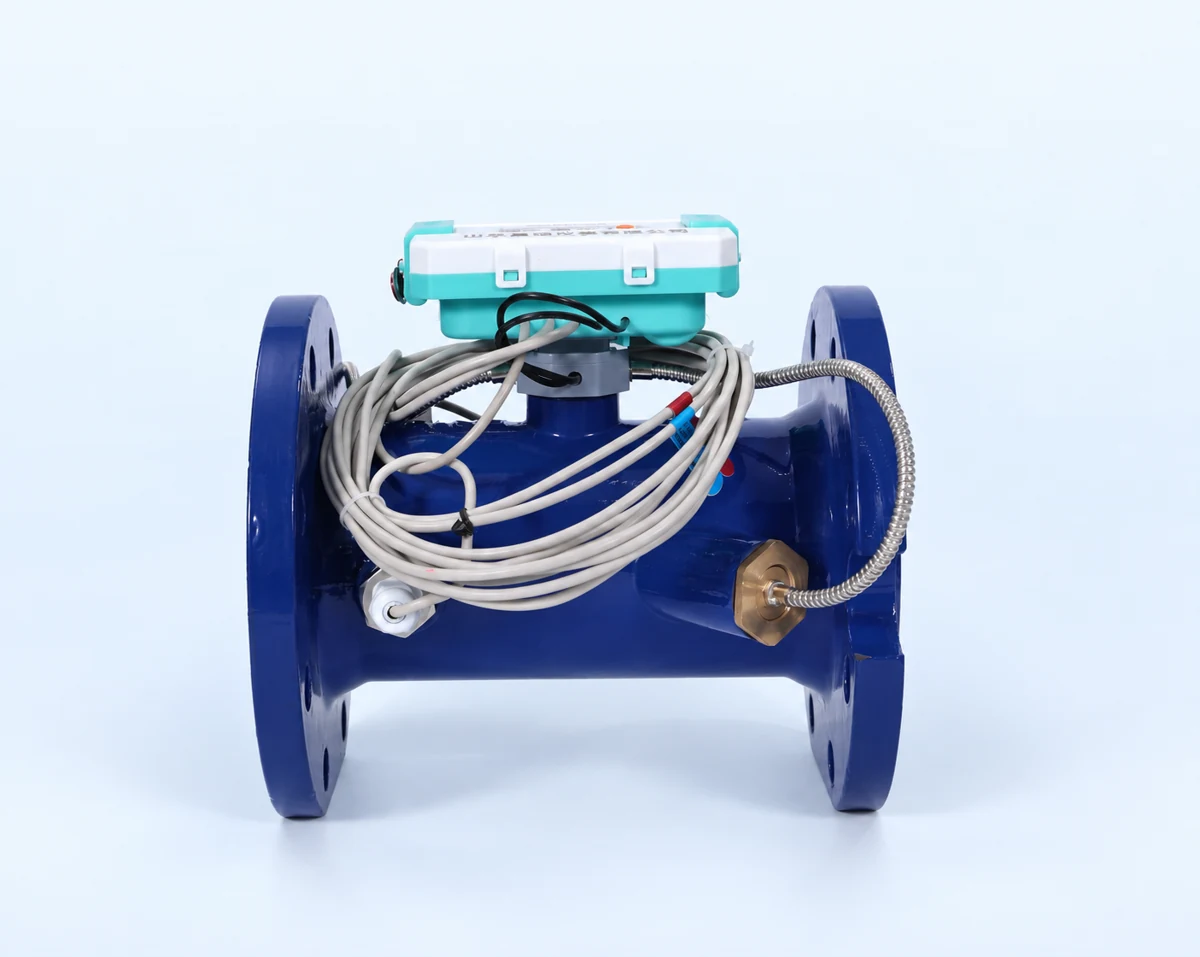

Large-diameter Ultrasonic Heat Meter – Flow & Dimensions

Permanent flow Qp is shown separately from maximum flow Qs. Match the selected assembly, temperature pair and calculator.

Model	DN (mm)	Qs (m³/h)	Qp (m³/h)	Qi (m³/h)
CSHM-DN50	50	30	15	0.60
CSHM-DN65	65	50	25	1.00
CSHM-DN80	80	80	40	1.60
CSHM-DN100	100	120	60	2.40
CSHM-DN125	125	200	100	4.00
CSHM-DN150	150	300	150	6.00
CSHM-DN200	200	500	250	10.0

Installation Dimensions

DN	Total L (mm)	Meter L (mm)	W (mm)	H (mm)
DN50	—	200	175	190
DN65	—	200	185	200
DN80	—	225	200	220
DN100	—	250	220	240
DN125	—	250	250	260
DN150	—	300	285	290
DN200	—	345	340	350

Qp: permanent flow; Qs: maximum flow; Qi: minimum flow. Dimensions are in mm. Total length and meter-body length are different measurements.

Need the selected-model datasheet or assembly drawing?Request Product Documents

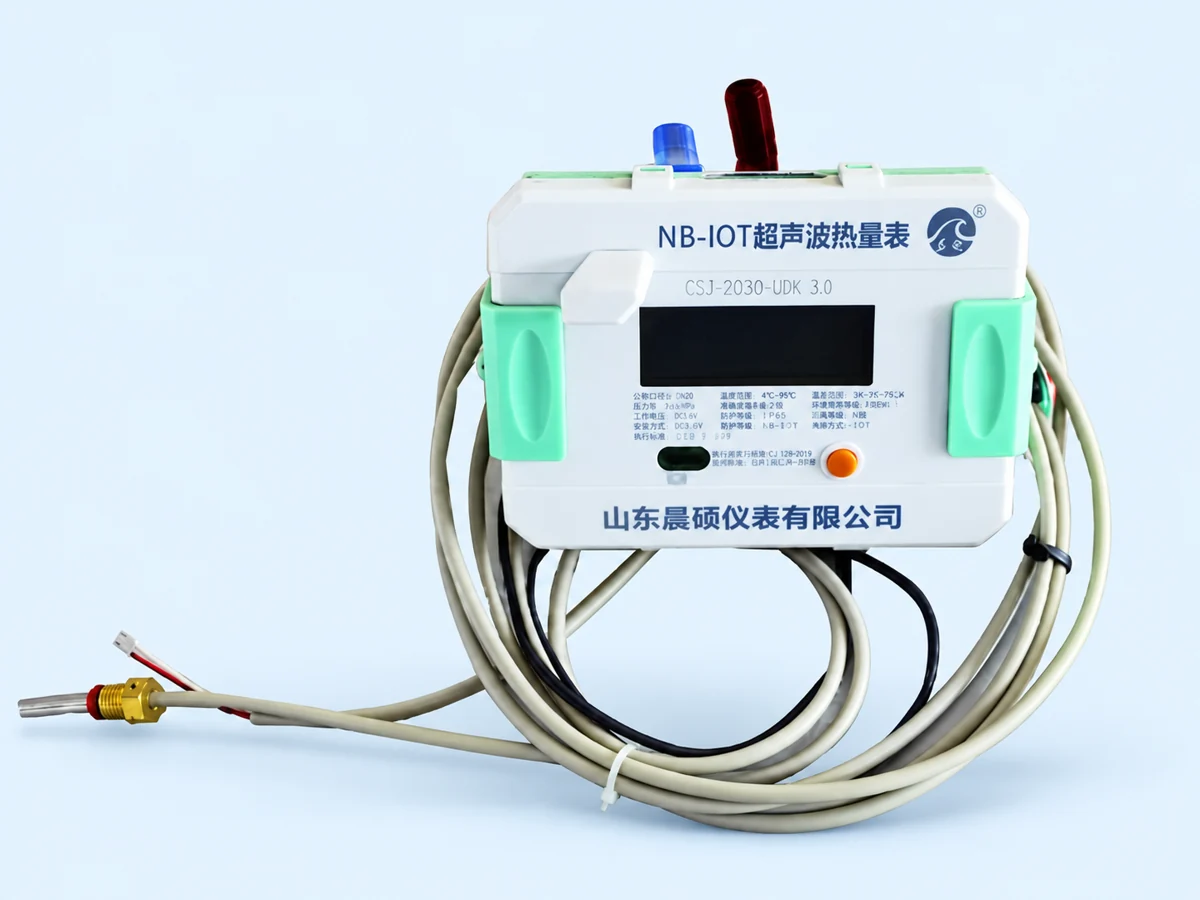

Small-diameter NB-IoT Heat Meter – Flow & Dimensions

Model	DN (mm)	Qs (m³/h)	Qp (m³/h)	Qi (m³/h)
CSHM-DN20	20	5	2.5	0.05
CSHM-DN25	25	7	3.5	0.07
CSHM-DN32	32	12	6	0.12
CSHM-DN40	40	20	10	0.20

Installation Dimensions

DN	Total L (mm)	Meter L (mm)	W (mm)	H (mm)
DN15	225	110	110	120
DN20	235	130	110	120
DN25	275	160	110	120
DN32	305	180	110	130
DN40	325	200	110	140

Need the selected-model datasheet or assembly drawing?Request Product Documents

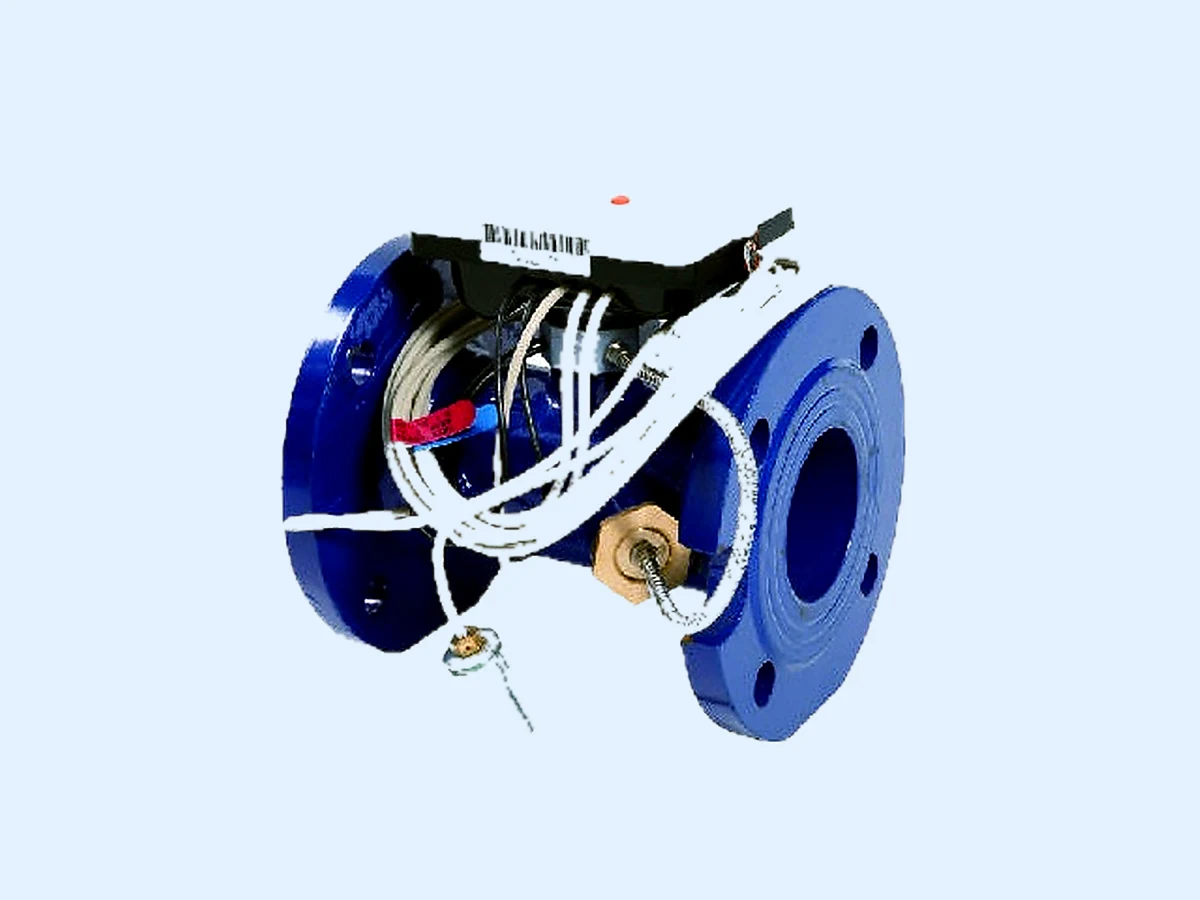

Large-diameter NB-IoT Heat Meter – Flow & Dimensions

Model	DN (mm)	Qs (m³/h)	Qp (m³/h)	Qi (m³/h)
CSHM-DN50	50	30	15	0.60
CSHM-DN65	65	50	25	1.00
CSHM-DN80	80	80	40	1.60
CSHM-DN100	100	120	60	2.40
CSHM-DN125	125	200	100	4.00
CSHM-DN150	150	300	150	6.00
CSHM-DN200	200	500	250	10.0

Installation Dimensions

DN	Total L (mm)	Meter L (mm)	W (mm)	H (mm)
DN50	—	200	175	190
DN65	—	200	185	200
DN80	—	225	200	220
DN100	—	250	220	240
DN160	—	250	250	260
DN150	—	300	285	290
DN200	—	345	340	350

Qp: permanent flow; Qs: maximum flow; Qi: minimum flow. Dimensions are in mm. Total length and meter-body length are different measurements. Request a drawing for DN125 dimensions. DN160 dimensions are listed separately; no DN160 flow rating is specified here.

Need the selected-model datasheet or assembly drawing?Request Product Documents

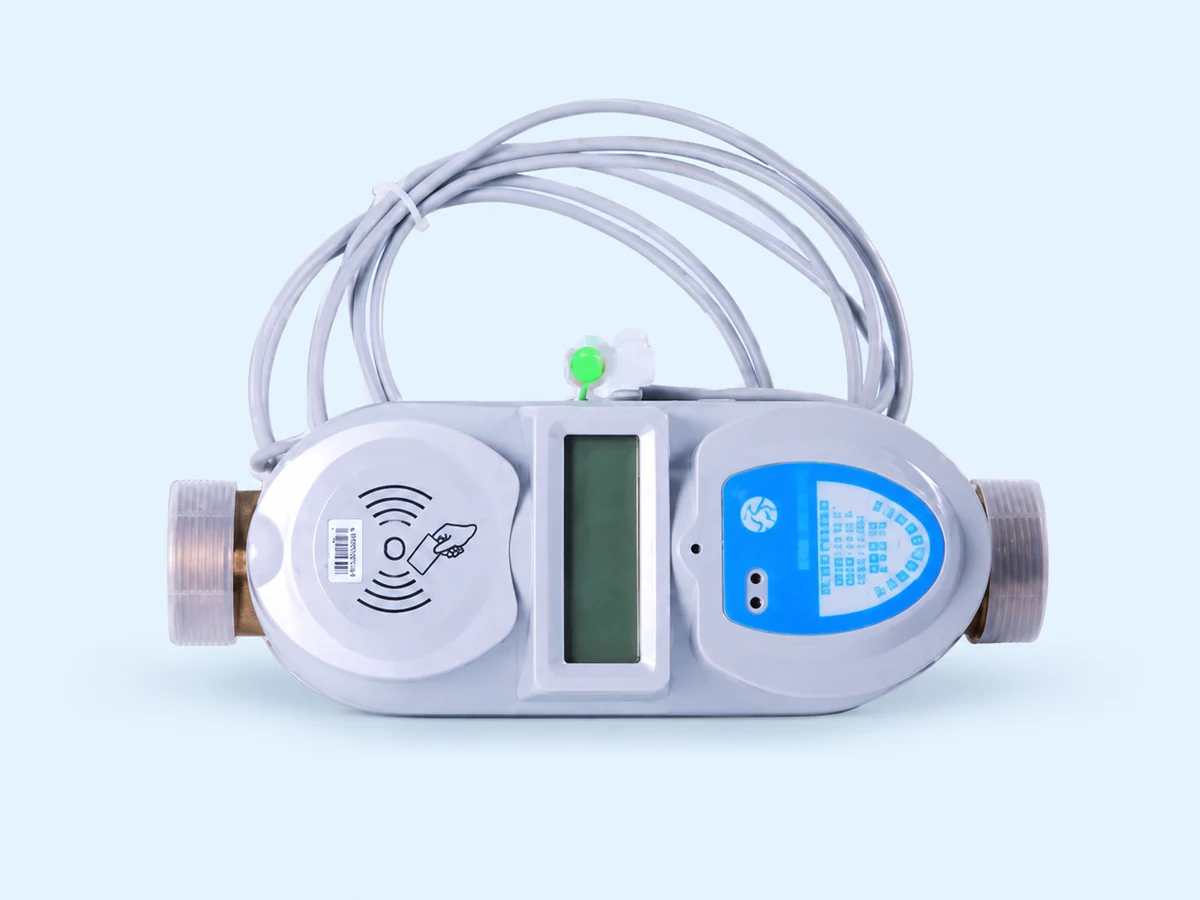

IC-card Prepaid Heat Meter – Flow & Dimensions

Model	DN	Q4 (m³/h)	Q3 (m³/h)	Q1 (m³/h)	L × W × H (mm)
LXSK-15	15	3	1.5	0.03	165 × 82 × 115
LXSK-20	20	5	2.5	0.05	195 × 82 × 115
LXSK-25	25	7	3.5	0.07	225 × 82 × 115

LXSK prepaid heat-meter models. Flow ratings and dimensions apply to the models listed in this table.

Need the selected-model datasheet or assembly drawing?Request Product Documents

Project Matching

Flow and Two Temperatures Become an Energy Reading

Keep the flow sensor, temperature pair and calculator matched as one metering package.

Measure the Flow

The ultrasonic flow sensor measures the water passing through the heat-exchange circuit.

Read Both Temperatures

The matched temperature pair measures the supply / return difference.

Calculate & Manage

The calculator determines thermal energy. Add remote reading or prepaid valve control with the selected route.

Specify heating or cooling duty and follow the selected model instructions for supply/return installation and temperature-sensor placement.

Chenshuo Project Support

Product Supply.
Project Matching.
Technical Documents.

Review permanent flow, temperature conditions, the sensor pair, communication and billing workflow as one heat-metering project.

Chenshuo water meter production and assembly floor

Heat-meter assemblies

Discuss threaded, flanged, remote and prepaid designs.

Matched metering components

Review flow body, temperature pair and calculator requirements.

Installation & technical documents

Request selected-model flow, dimensions and wiring information.

Before You Order

Frequently Asked
Questions

Product, installation and system questions for your project.

Discuss Your Requirements

How is a heat meter different from a water meter?

A heat meter combines flow measurement and a matched supply/return temperature pair to calculate thermal energy. Water volume alone does not measure heating or cooling consumption.

Which management option should I choose?

Choose standard metering for consumption measurement, NB-IoT for centralized remote readings, or the dedicated IC-card prepaid design for payment before use and valve control.

What flow and installation data do you need?

Send the required DN, normal and peak flow, available installation length, connection type, and supply and return temperatures. Standard and NB-IoT models use Qp for permanent flow and Qs for maximum flow.

Will the NB-IoT meter work with our platform?

Confirm local network coverage, supported operator bands, platform protocol and reporting requirements before ordering. The communication configuration must match the receiving system.

Does the standard heat meter include prepaid control?

No. Select the dedicated IC-card prepaid assembly with its motor-controlled valve and compatible card and vending system.
